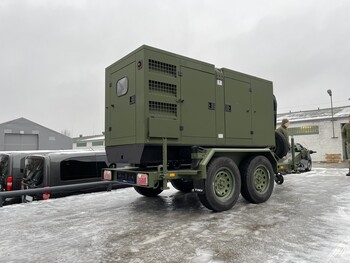

SIA "RĪGAS DĪZELIS DG" as an OEM and a member of The Federation of Security and Defense Industries of Latvia (FSDI Latvia) Federacija.lv has designed, developed, manufactures and delivers custom trailer type gensets for the defense sector.

SIA "RĪGAS DĪZELIS DG" as an OEM and a member of Federacija.lv The Federation of Security and Defense Industries of Latvia (FSDI Latvia) has designed, developed, manufactures and delivers custom portable type gensets for the defense sector.

In line with the client's custom technical requirements and STANAG criteria.

Many options available - custom made in accordance with your technical requirements.

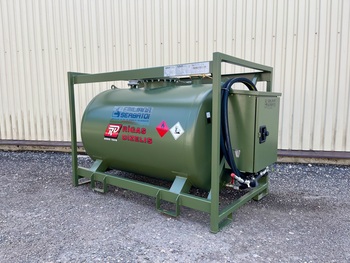

-Horizontal (Mod. 380-620-910) or vertical (Mod. 250-450) cylindrical tanks

-Fixed in a shock proof and anti-roll protective steel frame.

-Watertight electro-welded, sandblasted and oven-baked powder coated. The coating is applied electrostatically (the powder is sprayed using an electrostatic gun) and is then cured under heat to allow it to flow and form a skin.

-Equipped with internal breakwater plates (only for 620 and 910 models).

-Manhole, diam. Ø 300 mm complete with gasket and tight bolted cover, 10 mm thickness.

-2” safety and emergency vent valve, homologated according to regulations.

-Mechanical level gauge (Option), cod.TFTxxxYINDLIV, where xxx= tank volume in liters.

-Safety ball valve installed on the suction/ drain point, equipped with a lockable lever to prevent unwanted opening.

-Structural lifting lugs for balanced lifting from the top (including when tank is full).

-Forklift pockets located on the bottom of the steel frame.

-Bottom steel frame is configurated for floor anchoring.

-The unit is ready for earthing and equipotential connection.

- RASPO® can be provided with a fuel transfer system, battery operated, installed in an oven- baked powder coated metal cabinet, key lockable, fitted according to the customer’s requirements.

MAIN TECHNICAL DATA:

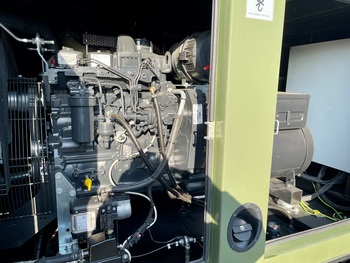

Power range: 10 - 100 kWe;

Operation temperature range from -30 to +50°C or other, if specified;Compliance with required power ratings at an altitude of 3000 m; Color: Olive Green RAL 6003 or other specified; Sound insulation: 70 dBA at 7 m; Three different heating systems for engine and switchboard; Built-in frame fuel tank, double walled tank on request; Manual refueling pump or electric if requested; Trailer with inertial brakes and clearance of 340 mm; Height-adjustable trailer coupling mechanism from 0,4 to 1,1 m; 12-pins plug to connect to the electric equipment of the vehicle (in accordance with STANAG 4135); Towing eye (lunette) Ø76 mm (acc. STANAG 4101); Parallel operation with other genset(s) and/or Mains (on request); Transportation by all modes of transport; Control panel and distribution panel protection – IP65; Sockets and plugs protection – IP67; Grounding equipment set with cable; Upward exhaust system; Cable (length up to 50-100 m); Additional cables, fuel canisters, fire extinguishers of different types, exhaust pipes, spare parts and tools boxes placed in special compartments;

Other options available on request and depending on the technical specification.

EGS-3200A Generator System includes 4 x 200 kWe (total of 800 kW PRP) generating sets with a 12t common automatic refueling system and 2 MWe substation.

The power output, technical characteristics and scope of supply can be adjusted to the particular customer's needs.

HORIZONTAL - BASIN 110% TANK VOLUME

CAPACIT. 3172 L

DIAMETER 1430 MM

LENGHT 2050 MM

BASIN:

2450 X 1900 H. 750PUMP DEVIL55 (Securbox)

· Ø 400 mm manhole complete with oil gasket and tight bolted cover.

· 3” filling plug with lockable quick cap.

· Mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’s volume.

· Vent device with flame arrestor mesh h 240 cm from ground.

· Mechanical float operated tank contents gauge with planetary gear, adjustable scale in cm.

· Anti-roll support legs and anchoring clamps.

· Tank drainage point provided with a safety cap for routine maintenance and cleaning.

· Suction point equipped with check valve and ball valve.

· Equipotential grounding point.

· For the TF5, TF6 and TF7 versions, steps and non-slip support surface are provided.

· For the TF5D and TF9 versions there is a stepladder.
