MAIN TECHNICAL DATA:

Power range: 10 - 100 kWe;

Operation temperature range from -30 to +50°C or other, if specified;Compliance with required power ratings at an altitude of 3000 m; Color: Olive Green RAL 6003 or other specified; Sound insulation: 70 dBA at 7 m; Three different heating systems for engine and switchboard; Built-in frame fuel tank, double walled tank on request; Manual refueling pump or electric if requested; Trailer with inertial brakes and clearance of 340 mm; Height-adjustable trailer coupling mechanism from 0,4 to 1,1 m; 12-pins plug to connect to the electric equipment of the vehicle (in accordance with STANAG 4135); Towing eye (lunette) Ø76 mm (acc. STANAG 4101); Parallel operation with other genset(s) and/or Mains (on request); Transportation by all modes of transport; Control panel and distribution panel protection – IP65; Sockets and plugs protection – IP67; Grounding equipment set with cable; Upward exhaust system; Cable (length up to 50-100 m); Additional cables, fuel canisters, fire extinguishers of different types, exhaust pipes, spare parts and tools boxes placed in special compartments;

Other options available on request and depending on the technical specification.

EGS-3200A Generator System includes 4 x 200 kWe (total of 800 kW PRP) generating sets with a 12t common automatic refueling system and 2 MWe substation.

The power output, technical characteristics and scope of supply can be adjusted to the particular customer's needs.

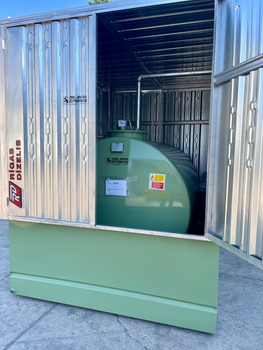

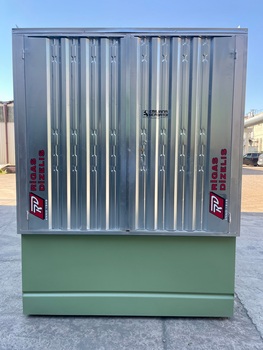

HORIZONTAL - BASIN 110% TANK VOLUME

CAPACIT. 3172 L

DIAMETER 1430 MM

LENGHT 2050 MM

BASIN:

2450 X 1900 H. 750PUMP DEVIL55 (Securbox)

· Ø 400 mm manhole complete with oil gasket and tight bolted cover.

· 3” filling plug with lockable quick cap.

· Mechanical overfill prevention valve calibrated to interrupt the fuel flow at 90% of the tank’s volume.

· Vent device with flame arrestor mesh h 240 cm from ground.

· Mechanical float operated tank contents gauge with planetary gear, adjustable scale in cm.

· Anti-roll support legs and anchoring clamps.

· Tank drainage point provided with a safety cap for routine maintenance and cleaning.

· Suction point equipped with check valve and ball valve.

· Equipotential grounding point.

· For the TF5, TF6 and TF7 versions, steps and non-slip support surface are provided.

· For the TF5D and TF9 versions there is a stepladder.

SIA "RĪGAS DĪZELIS DG" as an OEM and a member of The Federation of Security and Defense Industries of Latvia (FSDI Latvia) Federacija.lv has designed, developed, manufactured and delivers custom containerized gensets for the defense sector.

Containerized - 20” ISO type Defense application container; Compliance with required ratings at an altitude of 3000 m; Operation temperature range: -30 – +50°C or other specified; Color: NATO Green RAL6031 (F9 matt) + TL A-0033 painting, SCS certified container; LED lighting (DC/AC); Corrosion resistance; Sound insulation: 65 dBA at 7 m; Multiple heating systems for operation under low temperatures (Heating plugs, Oil preheater, Operation panel heater, Liquid (fuel) heater, 2 Electric container heaters); Fuel tank: Double walled; Electric & manual refueling pump; Special fuel type engine preheater; Control panel: IP65 protection; Mobile distribution box(es): IP65 protection; Sockets and plugs protection – IP67; sockets with automatic fuses; Grounding equipment set with cable; Automatic ventilation shutters, Fuel filter-separator, Oil drain pump, Control panel, RS232, RS485, Ethernet, GPRS, Main distribution panel, 4 pcs. x Mobile distribution switchboards, 4 pcs. x reel with cable (4x50m); Additional cables, fuel canisters, fire extinguishers of different types, exhaust pipes, spare parts and tools boxes placed in special compartments.

In line with STANAG criteria.

Many other options available - custom made in accordance with your technical requirements.

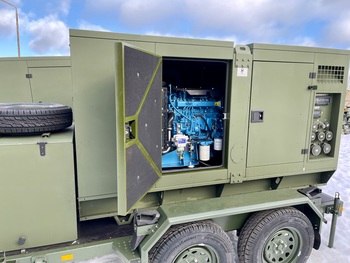

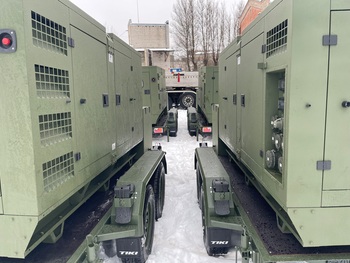

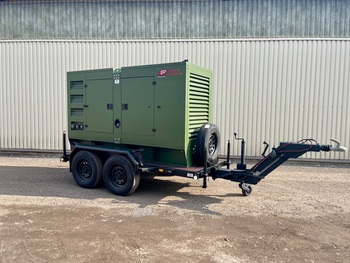

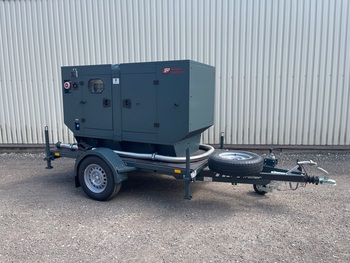

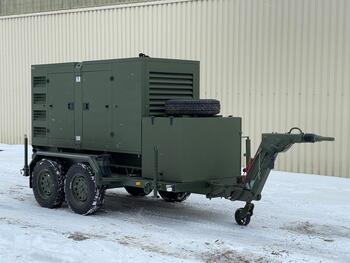

SIA "RĪGAS DĪZELIS DG" as an OEM and a member of The Federation of Security and Defense Industries of Latvia (FSDI Latvia) Federacija.lv has designed, developed, manufactures and delivers custom trailer type gensets for the defense sector.
